Waste Water Treatment

One popular method of treating waste water involves storing it in evaporation ponds or storage ponds. As with other lining containment applications, the engineering objective is to eliminate any seepage outside the ponds. Geomembrane liner has accomplished this objective for the last 30 years.

We have the latest factory fabrication and field installation technology to insure a first quality project. PVC has been the dominant polymer in this market due to its ease of installation, market performance and cost effectiveness.

Tank Linings

Geomembrane liner is an effective containment membrane used in tanks to hold a wide variety of liquid - water, wastewater, treated sludge, fuels, gasoline, etc.

We can manufacture drop-in tank linings for smaller projects to eliminate any installation costs. We fabricate a wide variety of polymers in order to be able to select the right material for your project.

Sewage Lagoons

Many municipalities or industrial facilities rely on aeration to treat, reduce or eliminate sewage. This aeration will typically take place in a single or a system of ponds.

Geomembrane liner provides the containment to protect the soil and groundwater beneath these ponds. Polypropylene is an emerging material used in this application due to its long term service life and excellent physical properties.

A Geomembrane liner made from polypropylene provides the following advantages:

  1. Formulated to provide 20 year service life as an exposed membrane
  2. Excellent tensile/tear strength properties provide strength required in steep ponds of 3:1 slope angle or steeper
  3. Easy to field seam and replace; No specialized equipment necessary
  4. Not subject to environmental stress cracking as are some HDPE linings
  5. Excellent chemical resistance

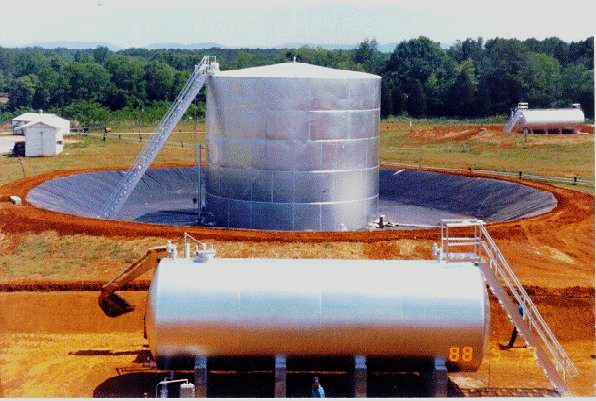

Secondary Containment

Impermeable plastic geomembrane liner has been used in many applications for prevention of seepage, which results in pollution. They are now being used under oil storage tanks and in diked oil storage areas.

Many states require that provisions be made for containment of oils and hydrocarbons if the containing vessel should rupture. Plastic geomembrane liner placed under above-ground tanks or lining diked storage areas provide this safety feature.

We can design, fabricate and install a containment system to provide containment if needed while exceeding regulatory requirements.

Whether your project involves fuel, gas or any other hydrocarbons. We can choose the best material for your project as we work with many different Polymeric materials.


Potable water reservoirs are a crucial element in the treatment system of many municipalities throughout the world. Many older reservoirs are built with concrete or asphalt bottoms which have leaked significant volumes of water costing millions of dollars.

We have provided a solution to this problem for over 30 years. No matter how small or large, easy or complex, we can install a lining for your reservoir.

Golf Course Ponds

Geomembrane liners offer design versatility, easily adapting to the contours and shapes of your ponds. They prevent water and fertilizer run-off from seeping into the ground. Flexible materials install easily and quickly. And, once installed, they're virtually maintenance-free.

When it's time to beautify an add challenge to your course, the solution is often "just add water".

Aquaculture Ponds

Today's sophisticated fish farming procedures demand a more manageable, controlled environment that can be achieved by an unpredictable mud-bottom pond. As fish hatcheries respond to the increased demand for edible fish, synthetic geomembrane liners are being used for ponds to provide better control, increased production and decreased maintenance. With the pond bottom not covered with soil, the pond operator can control the chemical and biological condition of the pond, and thus reduce chances of disease and other imbalance in the aquaculture environment.

In addition, synthetic geomembrane liners reduce or eliminate grass mowing on the side slopes of the pond, stabilize soil moisture content caused by fluctuating water levels, and reduce shrink/swell soil instability problems caused by too wet or to dry soil.


PVC linings have been used in North America to contain water in transport canals since the early 1950's. Initially 10 mil PVC was used for all of the early projects but was later replaced by 20 mil PVC due to the cost effectiveness of the material.

PVC is the material of choice for this application due to the following factors:

  1. PVC is provided in large factory fabricated panels to reduce field seaming requirements
  2. PVC is easy to weld in the field
  3. PVC is easy to deploy in the field
  4. PVC provides long term service life as a containment membrane
  5. PVC is a very cost effective material in regards to overall material cost - resin, sheet, fabricated panel and installation

The U.S. Bureau of Reclamation (under the Department of the Interior) and the Province of Alberta have successfully installed millions of square feet of PVC in their canal systems.

Leakage loss of this water has been eliminated through the use of PVC linings allowing water to be transported to population areas that do not have adequate water sources of their own. If you live in these areas, PVC has been a critical factor in your lifestyle.

Landfill Caps

Just as Federal and State Regulations detail every aspect of landfill location, construction and operation, they now detail every aspect of its closure design. A typical MSW landfill cap, from bottom up, consists of gas-venting layer, a low-permeability barrier layer (soil, a geosynthetic clay liner and/or a geomembrane), a barrier protection layer and a vegetable soil layer.

Closure requirements are critical for the post closure life cycle of a landfill as many landfills do not have synthetic membrane linings to prevent the filtration of leachate into the groundwater. Consequently the formation of leachate within a landfill cell must be prevented at all cost.

PVC is the primary material of choice for the following reasons:

  1. Provided in large factory fabricated panels to reduce field seaming requirements and installation costs
  2. Easy seamability-simple field tools required
  3. Reliable, durable, fully homogenous factory and field seams
  4. Excellent puncture and impact resistance to resist mechanical damage during installation and earth covering operations
  5. "Lay flat" contact subgrade (to promote a complete and rapid diversion of surface rainwater) as opposed to "buckling" effect caused in other geomembranes by their thermal contraction/expansion characteristics
  6. Excellent soil friction efficiency
  7. Non yield elongation characteristics - PVC will not "yield" or weaken until it reaches its breaking strength which occurs at 300-450% ultimate elongation; some geomembrane materials will yield under continued stress after an elongation of only 10-12% is achieved
  8. PVC is the most flexible of lining materials due to its amorphous molecular structure

A specifying engineer or project owner can be assured of the long-term serviceability of PVC in this application as the product has been in use for over thirty years as a containment membrane in various types of lagoons, holding ponds and landfills themselves

MSW Landfill Linings

Throughout history there has always been the need to dispose of the waste generated by man. Raw sanitary and industrial sewage was emptied into rivers and lakes. Solid wastes were either incinerated, buried or deposited in the ocean. When the population of the earth was much smaller than it is now, these methods provided the most efficient means of disposal. They were also relatively safe in so far as public health was concerned as nature was able to safely break down the disease carrying bacteria and other organic materials and render them harmless. However, as the population grew the lakes and rivers became so saturated with sewage that nature was unable to keep purifying the waters and pollution of such major proportions occurred, that it threatened public health. At the same time sanitary landfills were being used without regard for water purity, with the result that pollution found its way into our groundwater causing many problems ranging across a wide spectrum.

One solution to prevent this pollution was to place a liner within the landfill. Some of the materials used were clay, bentonite, asphalt and plastic membrane liners. Since impermeable plastic membranes have been used successfully for years in preventing seepage of water and various waste liquids, it was only logical that these be considered for sanitary landfill use. In addition, they have long life, are highly resistant to leachate and have the proper mechanical properties to be successful in this application.

We have supplied and installed containment linings for MSW Landfills since the 1970's. Federal RCRA Regulations enacted in the mid 1980's has dramatically increased the demand for landfill linings.

We have worked with various government authorities and industry associations to adopt QA/QC procedures and specification guidelines. Both PVC and Polypropylene have been used in this application successfully.

Decorative Ponds and Lakes

Decorative ponds and lakes enhance property appearance as well as increase property values. Natural soils cannot always adequately contain water and may leave a "murky" look in the pond. Our liners provide the following features:

  1. Long term leak-free service life
  2. Flexibility to form fit your pond or lake
  3. Large fabricated panel capability to eliminate or reduce field seaming requirements
  4. Ease of repair if mechanically damaged
  5. Leaves a "clean" appearance in pond or lake - no "murkiness" from pond or lake bottom
